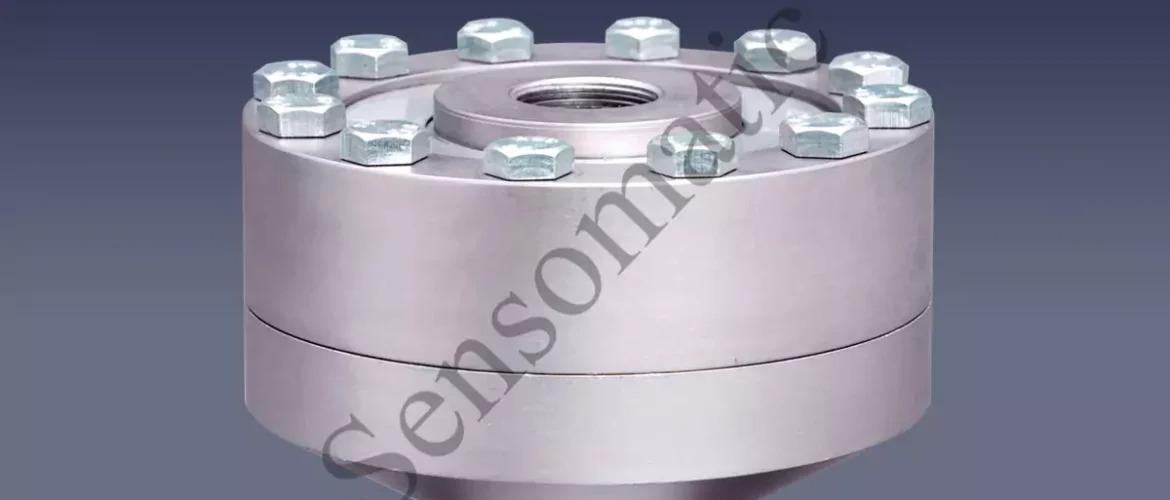

| A tension compression load cell (universal load cell) measures force accurately in both tension and compression from a single sensor with one continuous output signal. It replaces two separate single-direction sensors in applications where force cycles through both directions — including tensile testing machines, fatigue rigs, robotic force control systems, and inline process force measurement. Both directions share the same rated capacity and accuracy specification. |
| Parameter | Universal Load Cell | Two Single-Direction Sensors |
|---|---|---|
| Force direction coverage | Full tension plus compression range from single sensor | Tension-only and compression-only; gap at zero crossover |
| Calibration requirement | Single calibration covering both directions | Two independent calibrations; sensitivity mismatch at crossover |
| Signal output | Continuous bidirectional mV/V; polarity indicates direction | Two separate channels; switching logic required at crossover |
| Zero-crossover accuracy | Continuous; no transition artifact | Transition artifact possible during channel switching |
| Mechanical interface | Single load path; one fixture connection | Dual load paths; increased fixture complexity and mass |
| Fatigue test suitability | Full bidirectional cycle coverage | Limited; switching introduces latency per cycle |
| Calibration cost (annual) | One calibration event | Two calibration events; higher annual cost |
| System complexity | Low to moderate | Moderate to high; switching logic, dual wiring, dual conditioning |
The cost of two single-direction sensors versus one universal load cell favours the single sensor at the system level in almost every case. The calibration cost alone — two events per year versus one — typically recovers the unit cost premium of the universal cell within two calibration cycles.
Materials testing laboratories are the highest-volume application for universal load cell systems. A universal testing machine — the standard equipment in any accredited materials lab — subjects specimens to tension, compression, flexure, and combinations of these within a single test protocol. The load cell fitted to the UTM crosshead must measure accurately across the full force range in both directions without replacement, reorientation, or recalibration between test types.
A standard tensile test pulls a specimen to failure. The force-displacement curve covers from zero up to the specimen’s ultimate tensile strength. This is a tension-only test, and a tension-only cell would theoretically suffice — except that tensile testing machines also run compression tests, flexure tests, and peel tests on the same frame. A universal load cell installed once serves all test types. This is why UTM manufacturers specify universal cells as standard equipment rather than fitting separate sensors for different test modes.
In aerospace and automotive materials labs where I have worked, the standard practice is to specify the universal load cell at 110 to 120 percent of the frame’s maximum rated load, not the specimen’s expected failure load. This ensures the cell is never approaching rated capacity during normal testing, protecting both measurement accuracy and the cell’s fatigue life when the test protocol runs at high cycle counts.
Fatigue test rigs apply alternating tension and compression loads to specimens to characterize failure under cyclic loading. This is the application where a universal load cell is not just preferred but technically required. The load cycles continuously through positive and negative force values, often at frequencies from 1 Hz to 50 Hz and above. A single-direction sensor cannot follow the full cycle.
Force measurement in fatigue applications places higher demands on the cell’s mechanical construction than static testing. The gauge adhesive and cell body experience reversed strain on every cycle — the same mechanism that causes fatigue failure in the test specimen also applies to the sensor. A cell specified for fatigue test service should carry an explicit fatigue cycle rating, not just a static accuracy specification. The relevant standard for calibration in this context is ISO 376, which covers the calibration of force-proving instruments under repeated loading.
One detail that procurement specifications consistently omit: fatigue test load cells should be derated to 50 to 70 percent of their static rated capacity in continuous cycling applications. A 100 kN static-rated cell used at 100 kN alternating load will show calibration drift within months. The same cell derated to 60 kN maximum alternating load will hold calibration through millions of cycles.
Creep testing holds a specimen under constant tension or compression load for extended periods — hours to weeks — while measuring the change in load as the specimen deforms. The load cell must maintain its zero stability and sensitivity over the hold period without drift. Universal load cells used in creep testing applications should be specified with a low creep specification (typically below 0.05 percent of rated capacity per 30 minutes), a temperature coefficient specification matching the lab’s temperature stability, and a zero drift specification that accounts for the hold period duration.
Industrial robots and automation systems increasingly use force measurement to close the control loop — the robot applies a force, measures it through a load cell, and adjusts its motion based on the measured value. This application requires a force measurement systems with fast response, bidirectional sensitivity, and a mechanical interface compatible with the robot’s end-effector or tool mounting.
A collaborative robot inserting a pin into a bore uses force feedback to detect contact, control insertion force, and sense whether the pin has seated correctly. The force during the insertion sequence cycles through multiple phases: approach (low compression), contact (compressive force increasing), insertion (mixed tension and compression as the pin finds its seat), and seated verification (tension pullout test to confirm engagement). A single universal load cell mounted between the robot flange and the tool handles the full sequence with one continuous signal.
The mounting requirement in this application is a low-profile, flanged or through-hole cell that fits within the robot’s reach envelope without creating a lever arm that amplifies off-axis forces. Button-type universal load cells are preferred for this application over threaded axial cells: the load button constrains the force introduction geometry and significantly reduces the sensitivity to off-axis moment loading from robot wrist compliance.
Automated assembly lines use force measurement to verify that fasteners have reached specified torque (through axial force), that press-fits have achieved correct interference (through insertion force), and that sub-assemblies have seated fully (through seating force). All three verification tasks require measuring compressive forces. Rejection testing — pulling a component to verify it has not seated — requires tension force measurement. One universal load cell in the assembly station covers both the insertion and rejection force measurements in the same cycle.
Machining processes generate cutting forces in multiple directions. A boring operation applies compressive force to the tool as it cuts into the workpiece, while the tool’s exit creates a tension transient. Measuring these forces in process—through a force measurement system integrated into the tool holder or spindle—provides data for tool wear monitoring, chatter detection, and feed rate optimization.
Universal load cell systems integrated into tool holders must accommodate the high dynamic force rates and vibration environments of active machining, which requires cells with high natural frequency and low deflection under load.
At SENSOMATIC (https://sensomatic.co/), precision-engineered load cell solutions are designed to meet these demanding machining conditions, delivering reliable, high-frequency force measurement for accurate monitoring and process optimization.
In continuous manufacturing processes, force measurement monitors the tension or compression in materials moving through the line. These universal load cell applications are among the least discussed in standard product guides but are among the highest-volume deployments in industrial settings.
Converting lines for paper, film, foil, and textile substrates measure web tension — the tensile force in the moving web — to control winding torque, nip pressure, and drive speed. The load cells in web tension measurement see steady tension with dynamic variation as the web oscillates and as roll diameter changes the system inertia. A tension compression load cell configured for inline mounting measures the web tension through the reaction force on a dancer roll or load-sensing idler. The compression direction sensitivity is used during threading and tail-out sequences when the web goes slack and the tension drops through zero.
Wire drawing processes pull metal wire through progressively smaller dies to reduce its diameter. The drawing force is a tension measurement — the wire is in tension between the die and the take-up drum. Monitoring drawing force detects die wear (increasing force), wire defects (sudden force spikes), and lubrication failure (gradual force increase). A universal load cell mounted in the drawing machine’s force path measures the drawing tension directly, with the compression direction handling the back-tension measurement from the pay-off drum.
Metal forming presses generate compressive forces during the forming stroke and tensile forces during the return stroke and part ejection. Process monitoring — detecting die wear, measuring blank-holder force, tracking forming force signatures — requires a force measurement systems that covers both strokes. Universal load cells mounted in the press structure or die set measure the full force cycle without switching sensors between stroke phases.
| Variable | Options | Selection Guidance |
|---|---|---|
| Rated Capacity | 100 N to 500 kN; specify at 110-120% of maximum application force | Use the derating factor for fatigue applications: specify at 150-200% of maximum cycling force to protect cell fatigue life. |
| Interface Type | Threaded (male/female); flanged (bolt-circle); through-hole; button-type | Threaded for inline tension applications. Flanged for robot and machine tool mounting. Button-type for off-axis load rejection. Through-hole for integrated fixture mounting. |
| Accuracy Class | Standard (plus or minus 0.1% FS); precision (plus or minus 0.05% FS); laboratory (plus or minus 0.03% FS) | Match to application requirements. UTM applications typically need precision class. Process monitoring can use standard class. Calibration references require laboratory class. |
| Fatigue Rating | Static only; 100,000 cycles; 1,000,000 cycles; unlimited (for fatigue test service) | Always specify fatigue rating for any application with cyclic loading. Static-only rated cells will show calibration drift under repeated cycling regardless of load magnitude. |
One selection variable that tables never include: mechanical interface stiffness. A highly compliant cell body — one with significant deflection per unit force — introduces measurement error in stiff test machines where the cell deflection represents a significant fraction of the system compliance. High-stiffness universal load cells are specified for stiff test frames; standard-stiffness cells are acceptable in systems with other compliance elements in the load path.
A universal load cell produces a continuous bidirectional mV/V output. At full tension capacity, it produces plus 2 mV/V (at standard sensitivity and 1V/V excitation). At full compression capacity, it produces minus 2 mV/V. Between these limits, the output is linear and proportional to the applied force.
Three configuration requirements apply to the signal conditioning system for any tension compression load cell installation:
For PLC integration, 4-20 mA with zero force at 12 mA is the most commonly used convention. For DAQ integration in test laboratory applications, a plus or minus 10 V analog output or RS-232/USB digital output from the conditioner is standard. Verify that the DAQ module’s analog input range matches the conditioner’s output range before purchase — a mismatch here is the single most common cause of universal load cell systems that work correctly at commissioning but produce clipped data at high loads.
A threaded universal load cell has defined thread engagement specifications for both its tension and compression connections. Under-engagement — less than the specified minimum thread depth in the mating fixture — concentrates load at the first few threads and introduces eccentric loading into the cell body. The eccentricity produces a consistent, repeatable output offset under tension that looks like a calibration error but cannot be corrected by calibration adjustment. It corrects only by achieving the specified engagement depth.
The specified minimum is typically 1.5 times the thread diameter. For an M20 thread, that is 30 mm minimum engagement in the fixture. Check and document thread engagement depth for every universal load cell installation before first use.
A tension compression load cell installed in a new test system or automation cell requires explicit polarity verification at commissioning. Apply a known tension load. Verify the output is positive (or whatever convention the system requires). Apply a known compression load. Verify the output is negative and of equal magnitude for the same force level. If the polarities are inverted, adjust the conditioner wiring or configuration before recording calibration data.
Skipping this step and relying on the datasheet polarity convention without physical verification is the source of more bidirectional accuracy complaints in new installations than any other single cause. Wiring errors, conditioner configuration defaults, and cell orientation reversals all produce polarity inversions that are not detectable from the output signal alone if only one direction is checked during commissioning.
A universal load cell with a 50 kN static capacity rating is not a 50 kN fatigue test cell. Running alternating 50 kN tension and compression loads through a statically-rated 50 kN cell stresses the cell body and gauge adhesive at 100 percent of their rated static design limit on every half-cycle. Fatigue damage accumulates rapidly. The appropriate derating for continuous cyclic service at the cell’s maximum frequency is 50 to 60 percent of static rated capacity. A 100 kN cell used at a maximum of 55 kN alternating load operates within a fatigue-safe envelope for high cycle counts.
An S-type load cell is one mechanical form of a universal load cell — its S-shaped body accepts both tension and compression through threaded ends, making it a bidirectional force measurement sensor. The term ‘universal load cell’ also covers button-type, through-hole, and flanged designs that measure both directions. The distinction matters for application matching: S-type cells are suited to inline hanging and tension applications; button-type universal cells are preferred for machine tool and robotic applications where off-axis load rejection and low profile are priorities.
Not reliably. A compression-only cell has a defined load path that accepts vertical compressive force through a load button or flat top surface. Applying tension requires a different mechanical connection — threads or a bail — that is not present on compression-only designs. Attempting to apply tension to a compression cell typically results in the load button lifting off its seating, producing zero or invalid output, and risking mechanical damage to the cell if the tension load is significant. Specify a universal load cell when the application requires tension measurement.
Standard output sensitivity is 2 mV/V. At 10V excitation and full tension rated capacity, the output is plus 20 mV. At full compression rated capacity, the output is minus 20 mV. Zero force produces zero output (after zero calibration). Signal conditioners convert this to 4-20 mA, 0-10 V, or digital format (RS-232, RS-485, USB, EtherCAT) depending on the control system integration requirement. For bidirectional applications, configure the analog output to a bipolar or mid-range convention where zero force maps to a non-zero output signal level.
A precision-grade universal load cell carries the same accuracy specification in both directions — typically plus or minus 0.05 percent of rated capacity for non-linearity, hysteresis, and repeatability. The accuracy does not degrade in one direction relative to the other if the cell is correctly manufactured and calibrated. Apparent accuracy differences between directions in an installed system are almost always installation issues — thread engagement, preload, polarity configuration — rather than cell design limitations.
Flanged or through-hole universal load cells are the standard for robotic and machine tool applications. Flanged cells bolt directly to the robot flange or tool plate with a bolt circle that provides rigid, repeatable mounting. Through-hole cells thread onto a central post with a flanged top face, providing both axial load measurement and a rigid mechanical reference. Avoid threaded axial cells in robotic applications: the connection points are exposed to off-axis moment loading from robot motion, which degrades measurement accuracy and can fatigue the thread connections.
The standard path is: universal load cell connected to a DIN-rail-mounted load cell signal conditioner (4-20 mA output, configured for bidirectional range with 12 mA at zero force), connected to an analog input module on the PLC rack. Configure the PLC’s analog input scaling so that 4 mA maps to the negative full-scale force and 20 mA maps to the positive full-scale force, with 12 mA as zero. Verify the scaling by applying known test weights in both directions before commissioning. For higher update rates (above 50 Hz), use a digital output conditioner with EtherCAT or Profibus integration instead of the 4-20 mA analog path.
A universal load cell with a bidirectional rated capacity of 10 kN is rated for 10 kN in tension and 10 kN in compression. Both directions share the same maximum load, the same accuracy specification, and the same safe overload limit (typically 150 percent of rated capacity). If a datasheet lists different capacities for tension and compression, the cell has asymmetric construction and the lower of the two capacities governs the system specification. True universal load cells have symmetric construction and equal capacities in both directions.
If your application cycles through both tension and compression — within a single test, a single assembly sequence, or a single process cycle — a universal load cell is not an option to consider; it is the technically correct sensor for the application. The question is which design variant fits the mechanical interface, capacity range, and signal chain requirements of your specific system.
Three questions determine the specification starting point:
Take those three answers and match them against a datasheet. If the numbers fit, the cell fits.
| Explore Sensomatic’s Universal Load Cell range — available from 100 N to 200 kN, covering threaded, flanged, and button-type interfaces. OIML-traceable factory calibration certificate included with every unit. Download the technical datasheet or request an application consultation for test system integration, automation force control, or inline process measurement: https://sensomatic.co/universal-load-cell/ |
